Cable Shark® Mechanism

Cable Hanging System Mechanism

Labor-saving, versatile means for hanging static load HVAC Systems.

Description

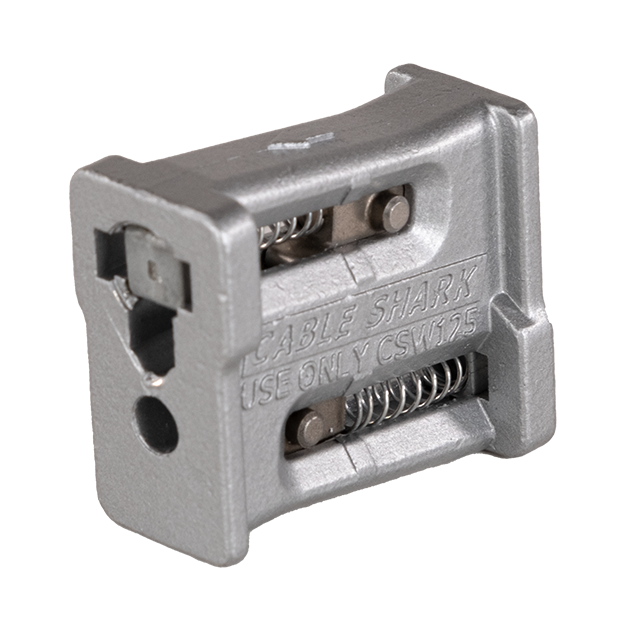

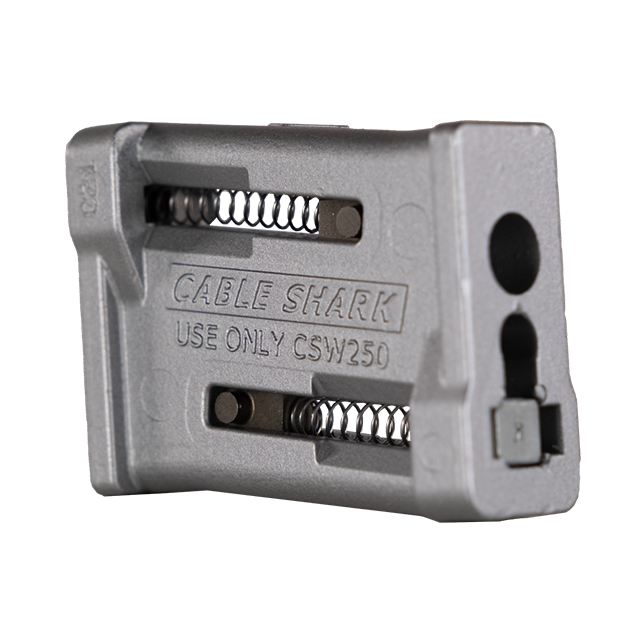

The Ductmate Cable Shark Cable Hanging System consists of Cable Shark Cable and the Cable Shark Mechanism. For the system to work properly, both components must be used together. The Cable Shark Mechanism uses two serrated steel wedges that allow the Cable Shark Cable to pass through in one direction. Then when a load is applied to the Cable Shark Cable in the opposite direction, the wedges grip the Cable Shark Cable and press it against the Cable Shark Mechanism housing, preventing it from moving.

Special Characteristics

• Engineered for safety, strength, and durability
• Fast and easy installation

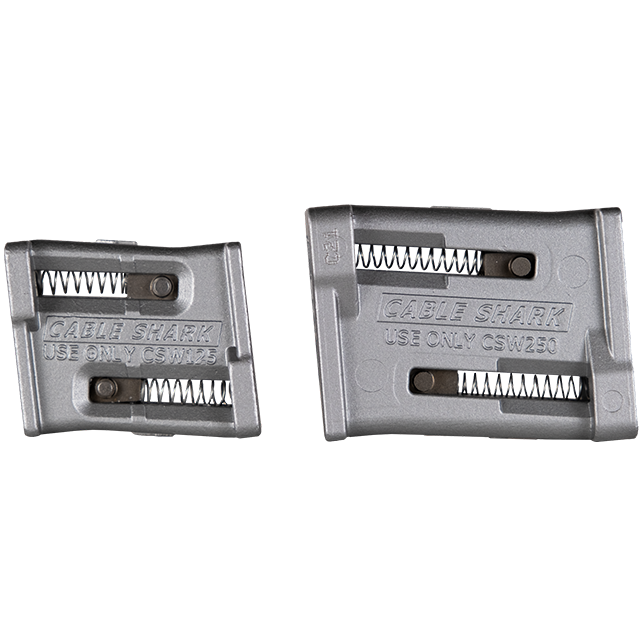

• Available in two sizes to meet specific load ranges
• Versatile hanging options for nearly every application
• Comprehensive Cable Shark Hanging System Construction Standards and Load Charts available here

CS125 / CS250 Certifications*

• SMACNA verified, meets SMACNA’s upper and lower attachment construction standards if used per manufacturer’s installation guidelines
• Seismic Certified to ANSI/ASHRAE Standard 171-2017
• ICC-ES AC284 Certified (ESR-4742)
  • 2022 California Building Code Compliant
  • 2022 California Residential Code Compliant
  • 2022 California Mechanical Code Compliant
  • 2023 County of Los Angeles Building Code
  • 2023 County of Los Angeles Residential Code
  • 2023 County of Los Angeles Mechanical Code

* Certifications apply to the CS125 and CS250 mechanisms only

STOP! IMPORTANT INFORMATION
Before using or installing the product, read and follow all product information and warnings. Do not use the product in a manner that is inconsistent with the manufacturer’s printed information. Ensure that all employees installing the Cable Shark System have been properly trained on using this product.

WARNING

• Use ONLY Cable Shark Cable when using the Cable Shark System.
• Use ONLY the correct sized Cable Shark Cable, corresponding to the Cable Shark mechanism.
• ALWAYS INSPECT cable for WEAR, DAMAGE, or ABUSE BEFORE and DURING USE.
• NEVER USE cable that is DAMAGED or ABUSED.
• NEVER REUSE cable or mechanisms under any circumstance.
• DESTROY and DISCARD used, worn out, or damaged cable in a fashion that does not permit the use by someone who does not know the hazard.
• Cable WILL FAIL if used, worn-out, overloaded, misused, damaged, improperly maintained, or abused.
• DO NOT use beyond the appropriate factor of safety.
• ALL USERS should be informed of ALL cable and safety precautions.
• REFER TO all applicable codes, standards, and regulations for inspection requirements and removal criteria.
• WHEN SELECTING an upper attachment, consult SMACNA Duct Construction Standards, Hangers, and Supports.
• CABLE FAILURE may cause serious injury or death.
• PROTECT yourself and others.

RESPONSIBILITY FOR THE PROPER AND SAFE USE OF THE CABLE RESTS WITH THE USER.
