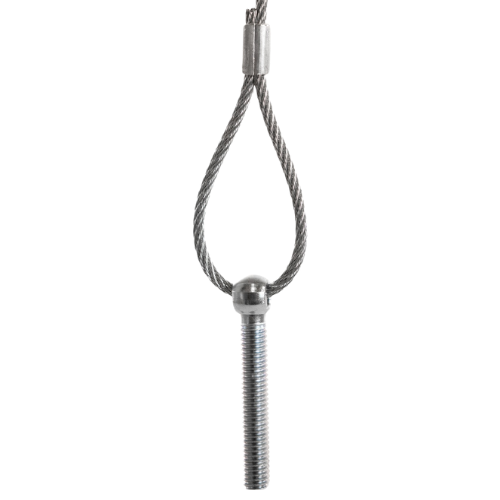

Cable Shark® 3/8″ Threaded Stud

Description

3/8” Threaded Studs with factory crimped loop for Cable Shark 125 or 250 (Each must be used with proper Cable Shark mechanism).

Special Characteristics

• 3/8” – 16 x 2 ¼” Threaded Stud
• CSW125 Load Limit: 125 lbs
• CSW250 Load Limit: 250 lbs
• Part Numbers: CSW*XX3/8STUD
  • XX Insert Length in Feet
    • *Insert 125 for CSW125 Cable
    • *Insert 250 for CSW250 Cable

• Available in standard 5’, 10’, 15’ and 20’ lengths. Custom lengths available upon request. Minimum quantities and lead times apply. Consult manufacturer.
  * Nut not included.
• * Cable Shark mechanism sold separately

STOP! IMPORTANT INFORMATION
Before using or installing the product, read and follow all product information and warnings. Do not use the product in a manner that is inconsistent with the manufacturer’s printed information. Ensure that all employees installing the Cable Shark System have been properly trained on using this product.

WARNING

• Use ONLY Cable Shark Cable when using the Cable Shark System.
• Use ONLY the correct sized Cable Shark Cable, corresponding to the Cable Shark mechanism.
• ALWAYS INSPECT cable for WEAR, DAMAGE, or ABUSE BEFORE and DURING USE.
• NEVER USE cable that is DAMAGED or ABUSED.
• NEVER REUSE cable or mechanisms under any circumstance.
• DESTROY and DISCARD used, worn out, or damaged cable in a fashion that does not permit the use by someone who does not know the hazard.
• Cable WILL FAIL if used, worn-out, overloaded, misused, damaged, improperly maintained, or abused.
• DO NOT use beyond the appropriate factor of safety.
• ALL USERS should be informed of ALL cable and safety precautions.
• REFER TO all applicable codes, standards, and regulations for inspection requirements and removal criteria.
• WHEN SELECTING an upper attachment, consult SMACNA Duct Construction Standards, Hangers, and Supports.
• CABLE FAILURE may cause serious injury or death.
• PROTECT yourself and others.

RESPONSIBILITY FOR THE PROPER AND SAFE USE OF THE CABLE RESTS WITH THE USER.
