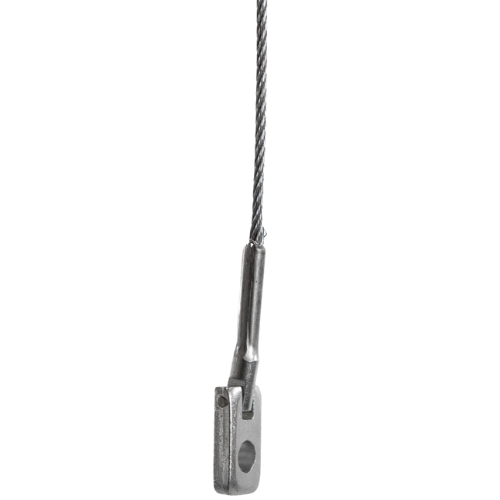

Cable Shark® Universal Pivoting Eyelet
Description
Universal Pivoting Eyelet that is adjustable to any angle when using Cable Shark 125 in duct hanging. For use ONLY with the Cable Shark 125 mechanism.
Special Characteristics
- Heavy-duty pivoting head adjusts to proper angle every time
- Eliminates stress on fixed-angled eyelets
- Eliminates need to stock multiple configurations
- Load Limit: 125 lbs
- Eyelet Size: 1” x ½”
- Hole size: ¼”
- Part Number: CSW125XXEYELET
- XX Insert Length in Feet
- Available in standard 5’, 10’, 15’ and 20’ lengths. Custom lengths available upon request. Minimum quantities and lead times apply. Consult manufacturer.
- * Cable Shark mechanisms sold separately
STOP! IMPORTANT INFORMATION
Before using or installing the product, read and follow all product information and warnings. Do not use the product in a manner that is inconsistent with the manufacturer’s printed information. Ensure that all employees installing the Cable Shark System have been properly trained on using this product.
WARNING
- Use ONLY Cable Shark Cable when using the Cable Shark System.
- Use ONLY the correct sized Cable Shark Cable, corresponding to the Cable Shark mechanism.
- ALWAYS INSPECT cable for WEAR, DAMAGE, or ABUSE BEFORE and DURING USE.
- NEVER USE cable that is DAMAGED or ABUSED.
- NEVER REUSE cable or mechanisms under any circumstance.
- DESTROY and DISCARD used, worn out, or damaged cable in a fashion that does not permit the use by someone who does not know the hazard.
- Cable WILL FAIL if used, worn-out, overloaded, misused, damaged, improperly maintained, or abused.
- DO NOT use beyond the appropriate factor of safety.
- ALL USERS should be informed of ALL cable and safety precautions.
- REFER TO all applicable codes, standards, and regulations for inspection requirements and removal criteria.
- WHEN SELECTING an upper attachment, consult SMACNA Duct Construction Standards, Hangers, and Supports.
- CABLE FAILURE may cause serious injury or death.
- PROTECT yourself and others.
RESPONSIBILITY FOR THE PROPER AND SAFE USE OF THE CABLE RESTS WITH THE USER.
