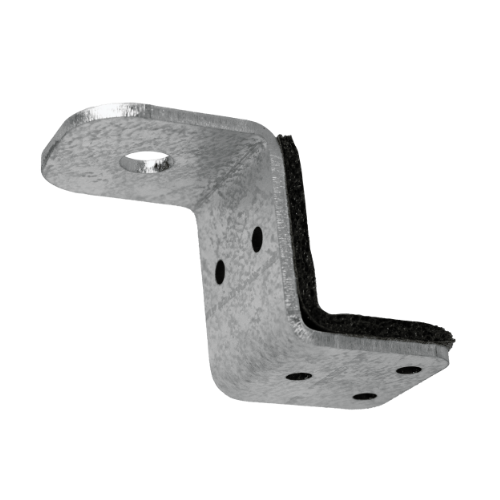

Rectangular Duct Bracket
Description

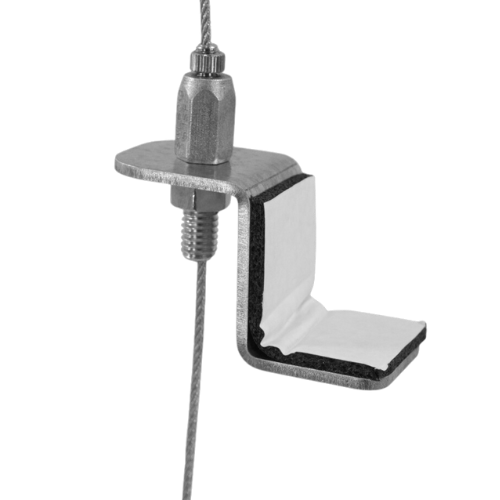

Rectangular Duct Bracket with double-sided adhesive neoprene gasket reduces air leakage at the screw and sound transmission, adheres to the duct for easier screw insertion, and accepts 3/8” and 5/16″ threaded rod or Hanging Adapter (sold separately).
Special Characteristics
- Made of 11-gauge galvanized steel with pilot holes for ease of alignment and insertion
- Load Limit: 125 lbs
- Box Part Number: ZBRACKET125GA
- Box Quantity: 100
- Gauge: 11GA
STOP! IMPORTANT INFORMATION
Before using or installing the product, read and follow all product information and warnings. Do not use the product in a manner that is inconsistent with the manufacturer’s printed information. Ensure that all employees installing the Cable Shark System have been properly trained on using this product.
WARNING
- Use ONLY Cable Shark Cable when using the Cable Shark System.
- Use ONLY the correct sized Cable Shark Cable, corresponding to the Cable Shark mechanism.
- ALWAYS INSPECT cable for WEAR, DAMAGE, or ABUSE BEFORE and DURING USE.
- NEVER USE cable that is DAMAGED or ABUSED.
- NEVER REUSE cable or mechanisms under any circumstance.
- DESTROY and DISCARD used, worn out, or damaged cable in a fashion that does not permit the use by someone who does not know the hazard.
- Cable WILL FAIL if used, worn-out, overloaded, misused, damaged, improperly maintained, or abused.
- DO NOT use beyond the appropriate factor of safety.
- ALL USERS should be informed of ALL cable and safety precautions.
- REFER TO all applicable codes, standards, and regulations for inspection requirements and removal criteria.
- WHEN SELECTING an upper attachment, consult SMACNA Duct Construction Standards, Hangers, and Supports.
- CABLE FAILURE may cause serious injury or death.
- PROTECT yourself and others.
RESPONSIBILITY FOR THE PROPER AND SAFE USE OF THE CABLE RESTS WITH THE USER.
