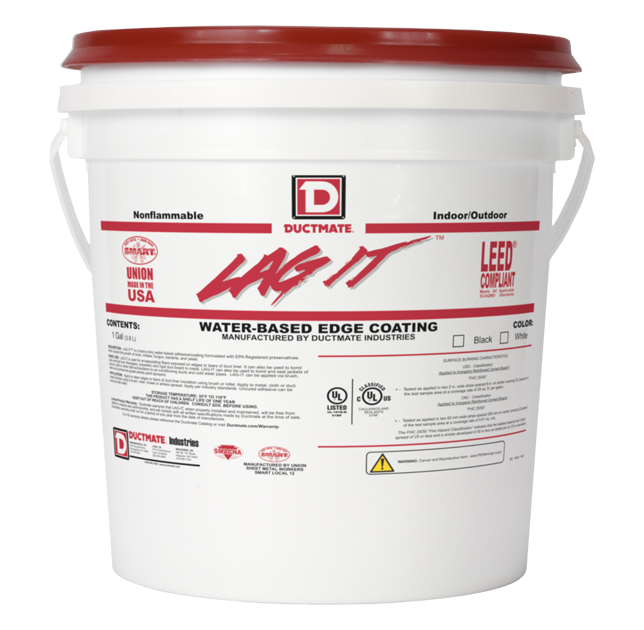

LAG-IT™
Encapsulating Edge Coating
LAG-IT is used for encapsulating fibers exposed on edges or tears of duct liner. It can bond open-cell duct liner (fiberglass, polyester) and rigid duct board to metal. LAG-IT can also bond and seal jackets of canvas, cloth or other fabrics/insulators to air-conditioning ducts and cold-water pipes.
LAG-IT can be applied via brush, roller and commercial-grade airless paint sprayers.
Description
LAG-IT is a heavy-duty water-based encapsulating edge coating in black and white. It is formulated with EPA Registered preservatives that prevent mold, mildew, fungus, bacteria, and yeast growth.
Special Characteristics
- UL GREENGUARD GOLD Certified
- Only UL Listed and Classified Product in the Industry
- High performance water-based duct liner edge treatment with smooth finish
- Encapsulates fibers and repairs duct liner tears
- Durable coating
- Water, UV, and mold resistant
- Crack and peel resistant
- Low odor
- Tough and permanently flexible
- High strength and durability
- Non-Flammable in wet state
- Exceptional coverage
- Sag resistant
- Will not discolor over time
- LEED® Compliant, meets all applicable EPA Method 24 and CDPH standards
- Manufactured by SMART Local 12
Application
Apply a “tack coat” with a minimum of 20-25 mils wet film thickness coating to the insulation. Apply canvas cloth or fiberglass mesh to the top of the tack coat and gently press the lagging fabric into the coating. Ensure the lagging material is uniformly secured at the top of the coating without wrinkles. Apply a second “topcoat” of 25-30 mils wet film thickness coating to encompass the lagging fabric fully.
Spray Equipment Instructions: Follow the spray equipment manufacturer’s instructions when using spray equipment. For best results, use a commercial-grade airless paint sprayer utilizing a spray tip with a 2”- 4” fan pattern and a minimum .021”-diameter orifice.
Technical Information
 |  |  |
| CHEMICAL TYPE: | Synthetic Latex | |
| COLOR: | White or Black | |
| ODOR: | Mild (wet) None (dry) | |
| VOC CONTENT: EPA Method 24 | Pass - Very Low | |
| TVOC EMISSIONS: CDPH Standard Method v1.2 | Private Office - Pass School Classroom - Pass |
|
| DENSITY: | 11.3 +/- 0.3 lbs per gallon | |
| SOLID CONTENTS: | 62% +/- 2% | |
| VISCOSITY: | 80,000 +/- 20,000 c.p.s. | |
| APPLICATION TEMPERATURE: | 35°F to 110°F | |
| SERVICE TEMPERATURE: | -25°F to 220°F | |
| STORAGE TEMPERATURE: | 35°F to 110°F | |
| DRY TO TOUCH: | 1 hour (approximate) | |
| CURE TIME: | 24 to 72 hours Depending on humidity, application, and temperature |
|
| FLEXIBILITY: ASTM D522 (1/8" Mandrel Bend) | Pass | |
| MOLD RESISTANCE: UL 181B Mold & Humidity Test | Pass | |
| FREEZE THAW STABILITY: | Pass | |
| ADHESION STRENGTH: UL 181B Peel Adhesion | Pass - Exceeds Standards | |
| UL TESTED COVERAGE: | 25 sq. ft./gal. at 1/16" 50 sq. ft./gal. at 1/32" |
|
| RECOMMENDED COVERAGE: | 50 - 80 sq. ft. depending on coating (65-80 sq. ft. / gallon for tack coat and 50-65 sq.ft./gallon for top coat) |
|
| SHELF LIFE: | 1 year (unopened container) | |
| PACKAGING: | 1 gallon pail 5 gallon pail |
|
| SPRAYER SETTINGS: | Spray Tip - 121: 2” Spray Pattern 0.021” Orifice Optimum Pressure Range: 1250 - 1500 p.s.i. |
|
