PROflex™

Flexible Duct Connector

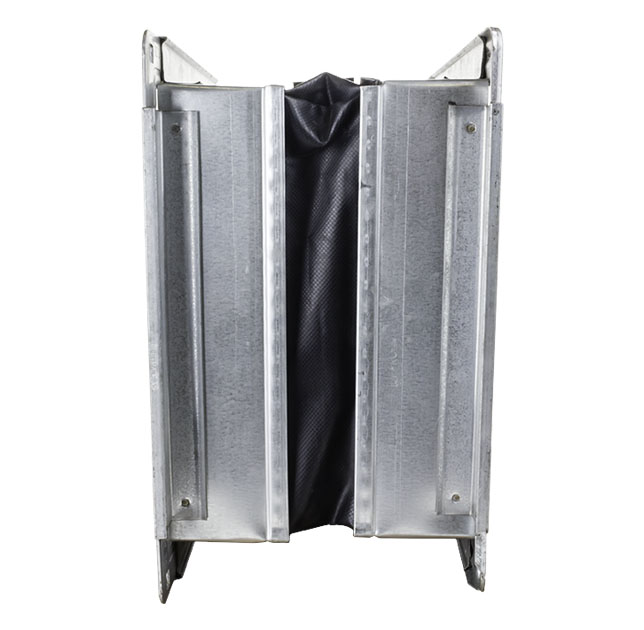

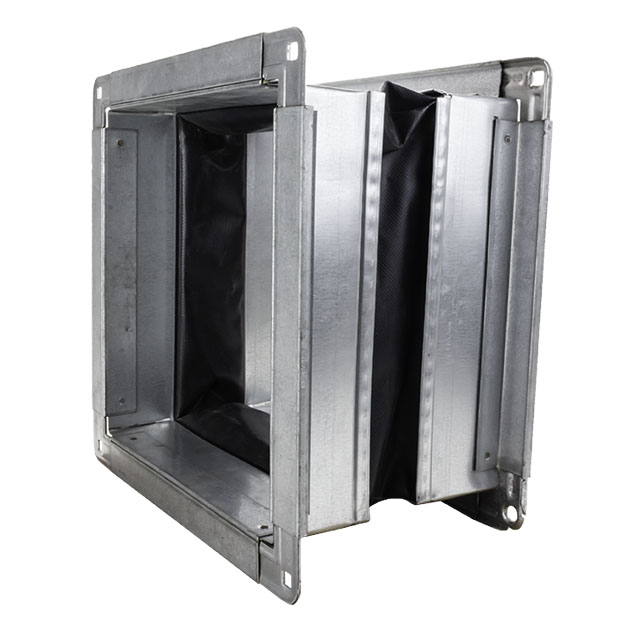

Designed to isolate equipment noise and vibration from the ductwork, the PROflex flexible duct connector consists of a fabric that is secured to the sheet metal on both sides. Typically, the connector is inserted between the equipment and the ductwork.

Description

Flexible duct connectors are widely used in air conditioning systems for commercial, industrial, and residential applications.

Special Characteristics

• Commercial or residential applications
• Galvanized, stainless steel, or aluminum metal
• Pre-assembled with sheet metal permanently secured to fabric
• Available in a variety of fabrics
  • Dual Fabric Vinyl Super Duty – UL Classified
  • Dual Fabric LA Approved Vinyl Super Duty
  • Hypalon – UL Classified
  • Neoprene
  • Silicone (silicone rubber coating)
  • Teflon

Special Characteristics – Commercial

• Double-lock gripping fingers of metal to fabric adds to holding power
• Airtight and waterproof at 10” positive w.g. to 10” negative w.g.
• 24 GA galvanized steel which meets ASTM-A-653-94-G60

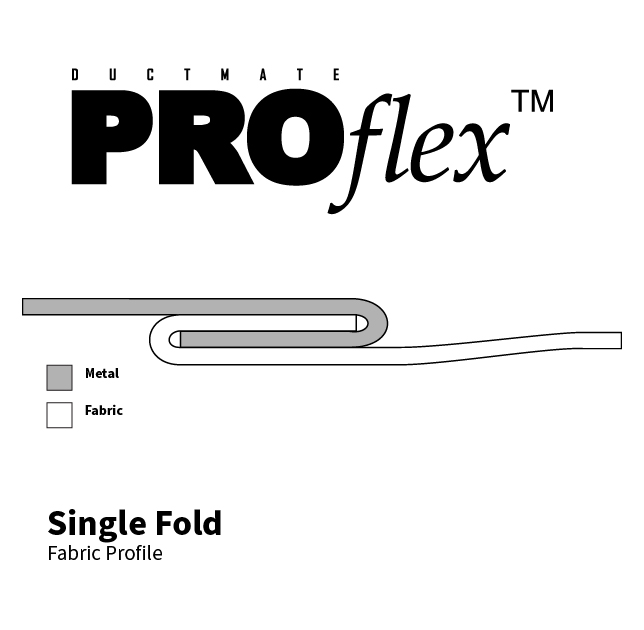

Special Characteristics – Single Fold

• Airtight and waterproof at 10” positive w.g. to 10” negative w.g.
• 24 GA galvanized steel which meets ASTM-A-653-94-G60

Special Characteristics – Residential

• Additional fold protects fabric when breaking
• Double-lock gripping fingers of metal to fabric adds to holding power
• Additional fold causes the fabric and metal to lay flat
• Airtight and waterproof at 10” positive w.g. to 10” negative w.g.
• 28 GA galvanized steel which meets ASTM-A-653-94-G60

City of Los Angeles General Approval Renewal on Neoprene, Silicone, and Hypalon PROflex
