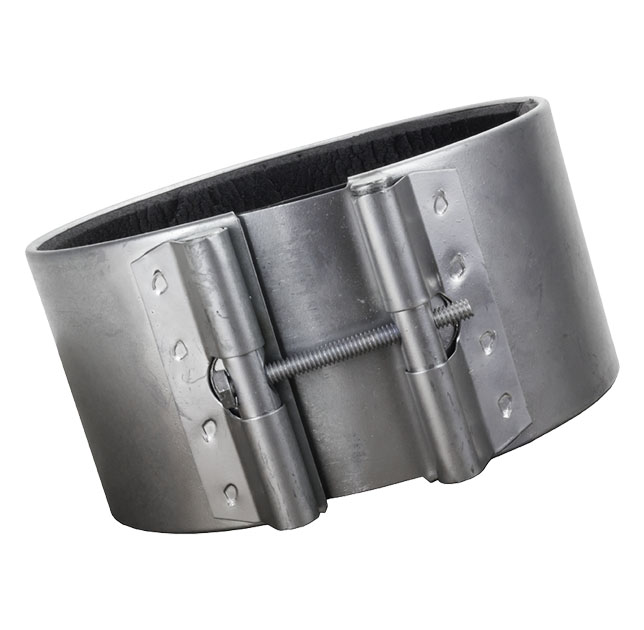

Quick-Sleeve™

Round Duct Band Clamp Connector

Quick-Sleeve is a single-bolt band clamp that provides a simple, leak-free connection for round ducts and does not protrude into the airstream, making it ideal for air conditioning, ventilation, and dust collection systems.

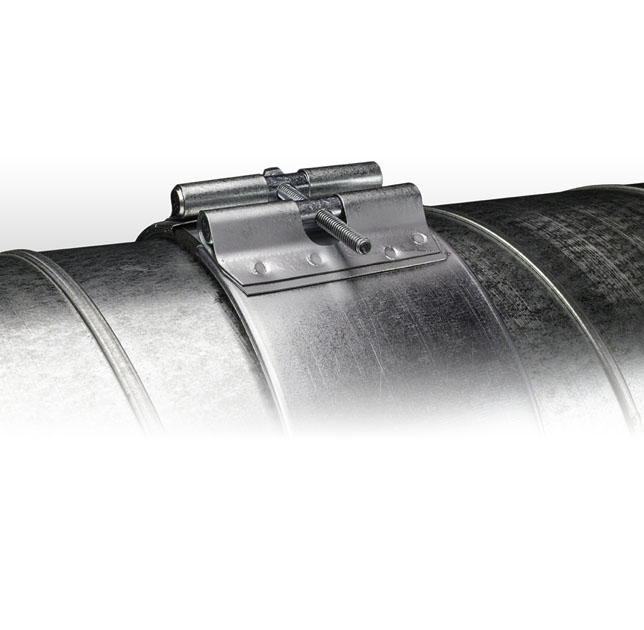

No end preparation of ductwork is required.  To install Quick-Sleeve, simply loosen its bolt, insert each duct about halfway into the connector, and then tighten the bolt.  This enables easy connection disassembly and reassembly for ducts requiring periodic cleaning or maintenance.

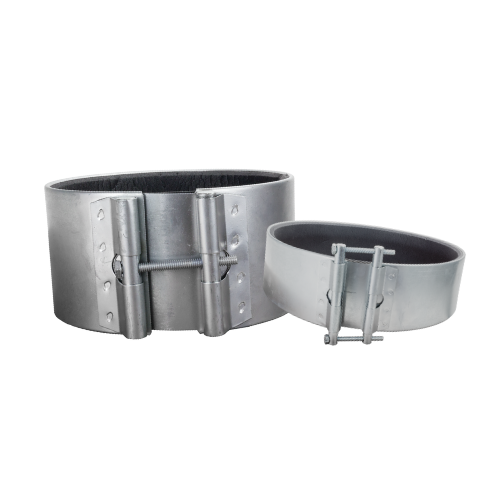

Single-bolt connections are available for ducts ranging from 3” to 18”.  For superior structural integrity, double-bolt connections are available for ducts ranging from 4” to 18”.

Special Characteristics:

• Only one bolt to tighten to complete the connection
• Virtually no leakage
• No end preparation of ductwork required
• No protrusion into the airstream, making it ideal for air conditioning, ventilation, and dust collection systems
• Enables easy connection disassembly and reassembly
• Single-bolt connections available for ducts ranging from 3” to 18”

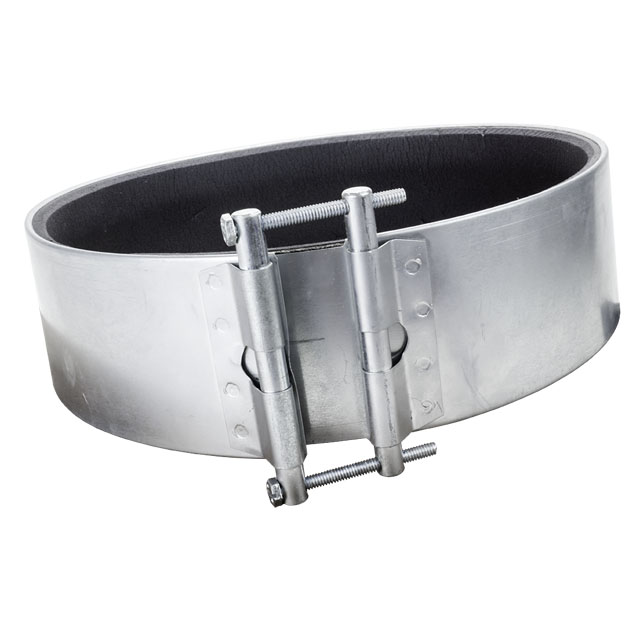

• Double-bolt connections available for ducts ranging from 4” to 18” for superior structural integrity
• Additional alloys and gasket options available upon request
