Hanger Strap
Duct Strapping

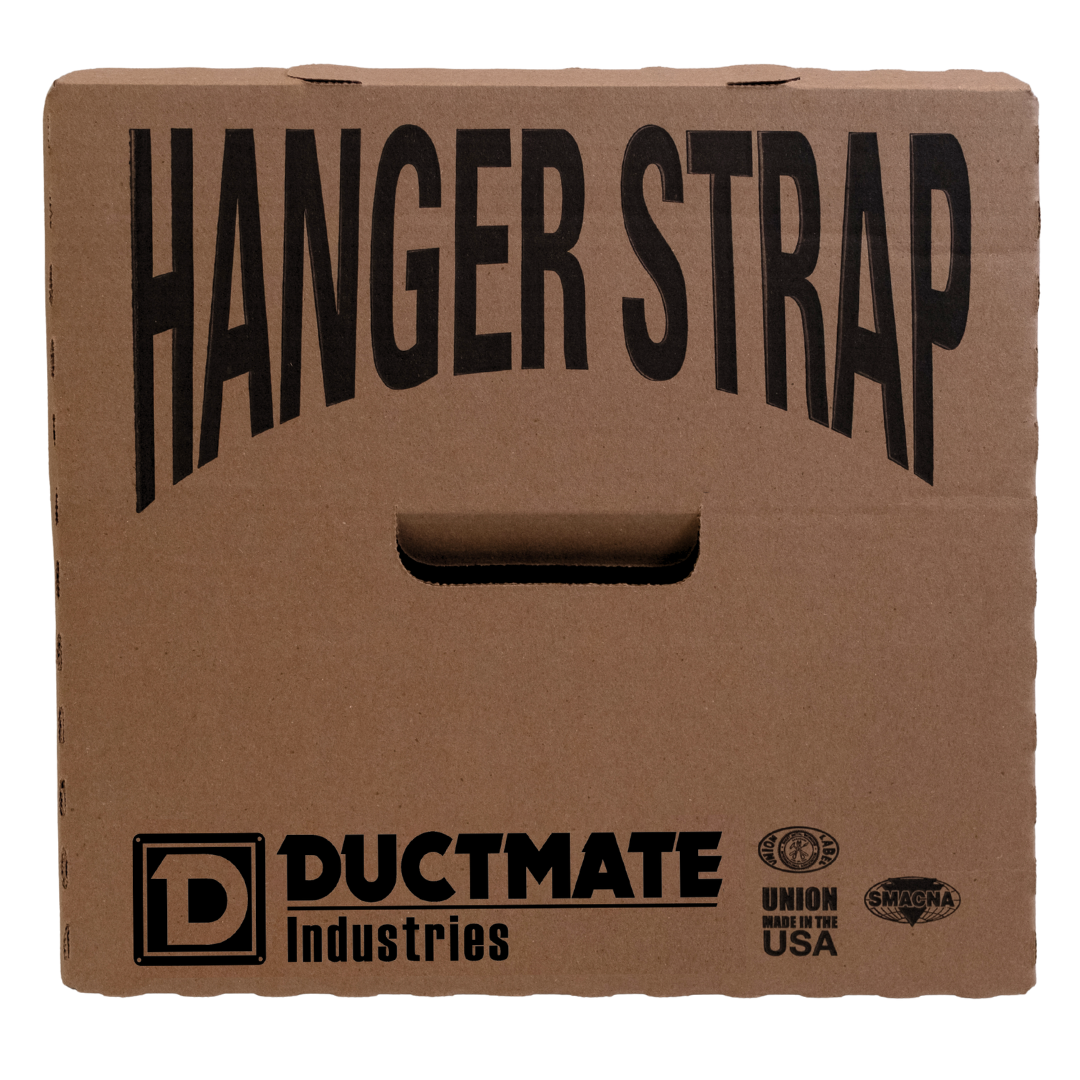

Hanger Strap is a versatile and easy-to-use ductwork strapping. It’s perfect for small or difficult installations, designed with a convenient carrying handle and an easy-to-dispense box for simple transport and use.
To best suit your installation needs, this strapping is available in boxes, coils, and bundles, and comes in 16-28 gauge galvanized steel or specialty stainless steel for specific applications.
Special Characteristics:
- Convenient carrying handle
- Easy-to-dispense box design
- Standard galvanized steel
- Available in stainless steel
- Perfect for small or difficult installations
- Available in boxes, coils, or bundles
Ordering Information:

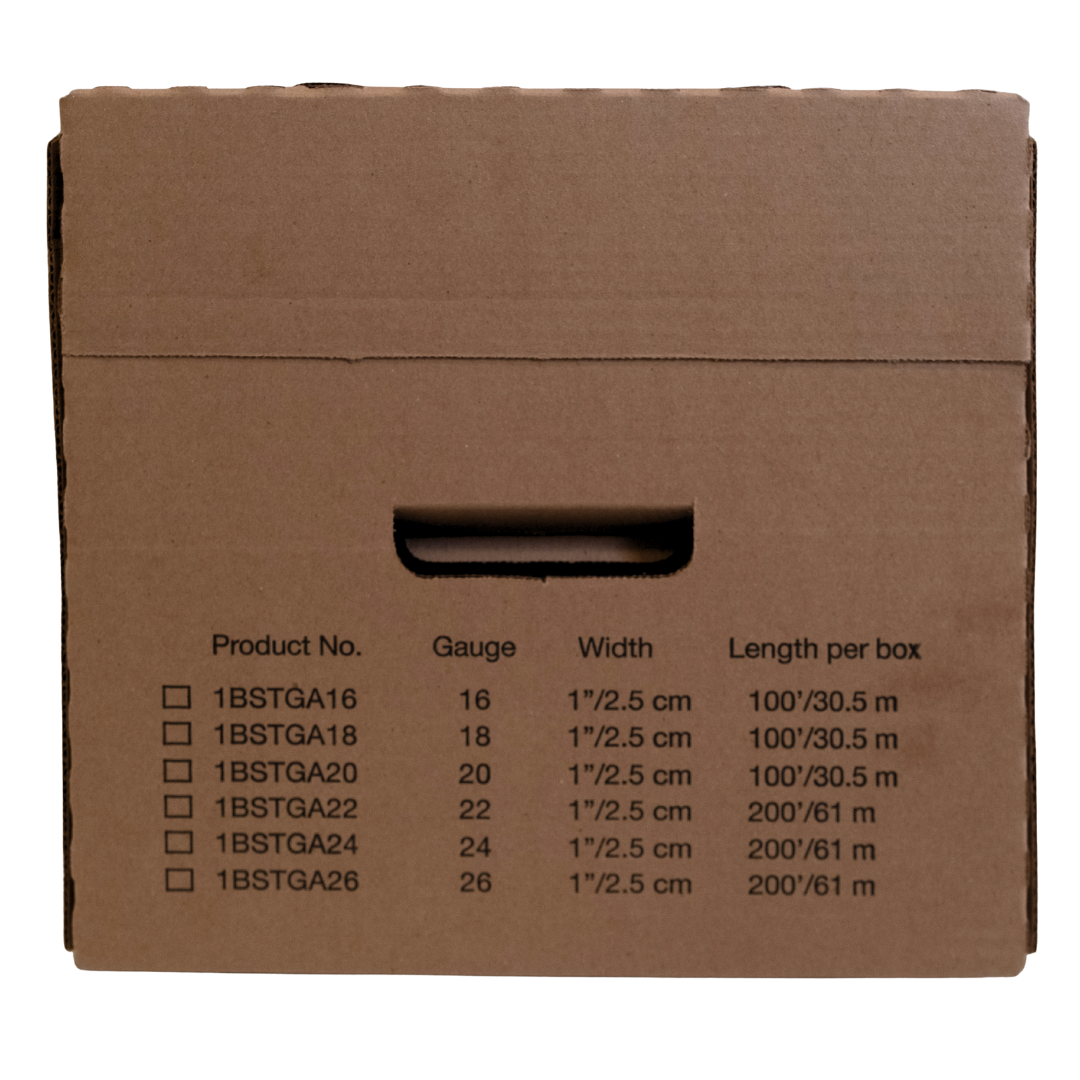

STRAPPING IN A BOX
| Part Number: | Gauge: | Width: | Weight/Box: | Length/Box: | |
| 1BSTGA16 | 16 | 1" | 22 lbs (10 kg) | 100' | |
| 1BSTGA18 | 18 | 1" | 17 lbs (7.7 kg) | 100' | |
| 1BSTGA20 | 20 | 1" | 12 lbs (5.4 kg) | 100' | |
| 1BSTGA22 | 22 | 1" | 21 lbs (9.5 kg) | 200' | |
| 1BSTGA24 | 24 | 1" | 17 lbs (7.7 kg) | 200' | |
| 1.5BSTGA24 | 24 | 1.5" | 26 lbs (11.8 kg) | 200' | |
| 1BSTGA26 | 26 | 1" | 15 lbs (6.8 kg) | 200' | |
| 1.5BSTGA26 | 26 | 1.5" | 20 lbs (9.1 kg) | 200' | |
| 1.5BSTGA28 | 28 | 1.5" | 18 lbs (8.2 kg) | 200' | |
STRAPPING IN COILS (1 SKID = 10 COILS)
| Part Number: | Gauge: | Width: | Weight: | Length: | |
| 1CST100GA18 | 18 | 1" | ~100 lbs (45.4 kg) per coil ~1000 lbs (453.6 kg) per skid | ~610'/coil ~6100'/skid |
|
STRAPPING BUNDLES (10′ LENGTHS, 100′ BUNDLES)
| Part Number: | Gauge: | Width: | |
| 1STGA16 | 16 | 1" | |
| 1STGA18 | 18 | 1" | |
| 1STGA24 | 24 | 1" | |
| 1STGA26 | 26 | 1" | |
