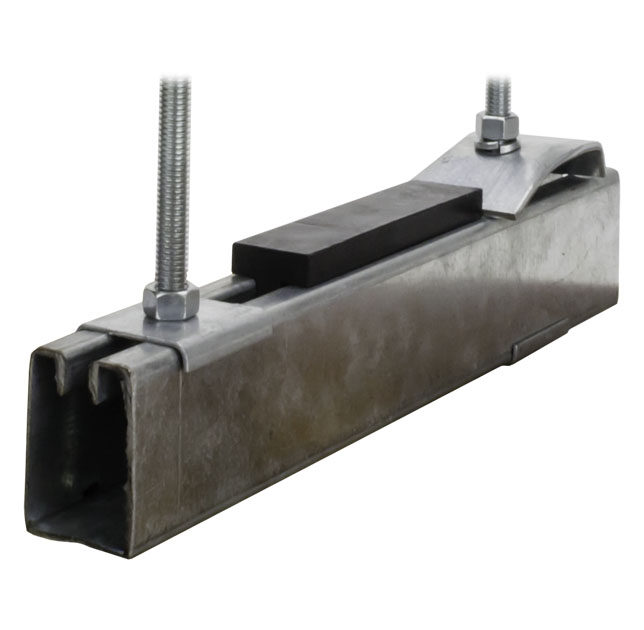

Pre-Punched Trapeze Duct Hanger

Specialized Duct Support Channel

The Pre-Punched Trapeze Duct Hanger is a specialized duct support channel designed to support rectangular and oval ductwork. Made from 18-gauge galvanized steel and measuring 2″ high x 1.5″ wide, this lightweight and easy-to-cut product arrives at the job site in 20-foot lengths, pre-punched with oval holes at 2-inch intervals for immediate use.

Its versatile design eliminates the need for hard-to-cut and punch-angle iron, and it can be standardized to replace multiple hanger types, thereby potentially reducing inventory costs. The hanger’s neat, professional appearance is complemented by the option to insert heavy neoprene gaskets for sound isolation, and it can be secured to structural members up to 1.5 inches thick using its beam clamp.

Special Characteristics:

• Lightweight & easy-to-cut
• Neat, professional appearance
• Pre-punched with oval holes spaced 2” apart on center
• 18-gauge galvanized steel in 20′ lengths, 2″ high x 1.5″ wide
• For supporting rectangular and oval ductwork
• Eliminates hard-to-cut and punch-angle iron
• Ships directly to the jobsite for immediate use
• Heavy neoprene gaskets can be inserted for sound isolation
• Beam clamp fastens hanger profile to structural members up to 1.5″ thick
• Versatile enough to standardize, possibly replacing several other types of hangers to reduce inventory cost
• Low in theft (exclusively sold to the HVAC industry)

Ordering Information:
